Pulley (rope)

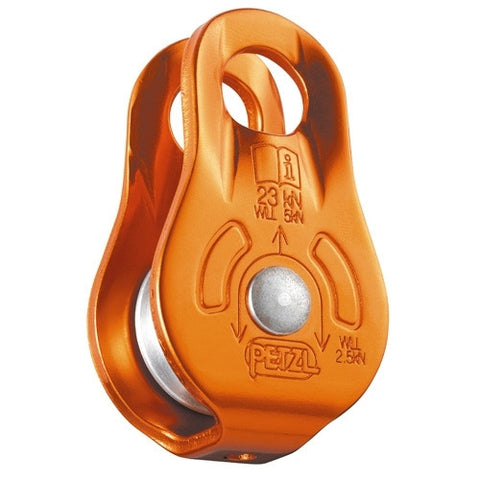

FIXE pulley system P05 assault line (Military specs) is rated 23 kN (breaking load).

• Rugged aluminum side plates has a breaking strength of 23kN
• Sheave is mounted on self-lubricating bushings for efficiency
• Accepts climbing ropes from 7 - 13mm in diameter
• Rope Diameter: Minimum: 7 mm, Maximum: 13 mm
• Sheave Diameter: 21 mm
• Efficiency: 71%
• Working Load: 2.5 kN x 2 = 5 kN
• Breaking Strength: 23 kN
• Material(s): Aluminum side plates, aluminum sheav
• Certification(s): CE EN 12278, UIAA

Please select size and after clicking the BUY button you will be able to specify the quantity desired for purchase and then click the UPDATE button.
